Based in Jaipur, KSC Cranes engineers and manufactures lifting solutions trusted by industries across India. Every product is built in-house — no reselling, no compromise on quality.
01
In-house fabrication — full quality control, no middlemen

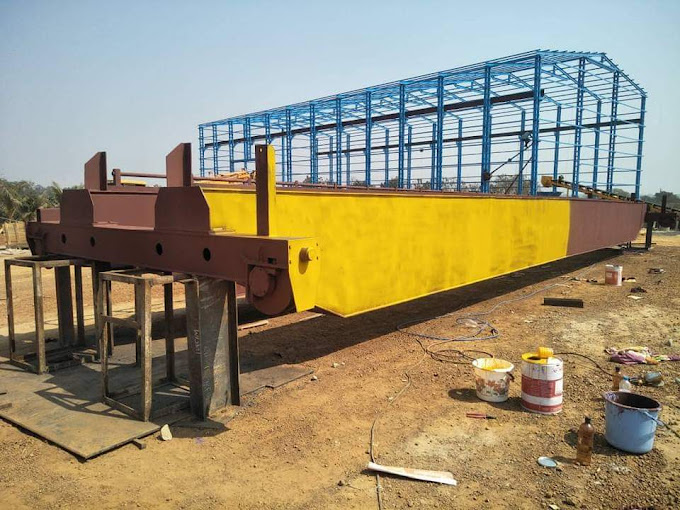

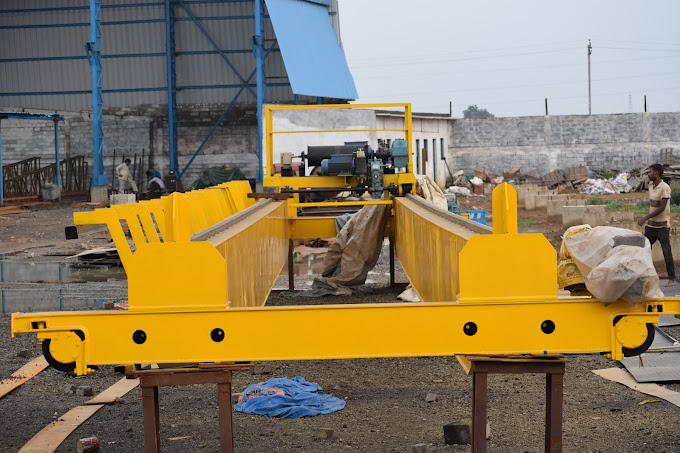

The Double Girder EOT (Electric Overhead Travelling) Crane is KSC Cranes flagship product. Two box girders spanning the bay deliver superior rigidity and handle higher capacities than single-girder alternatives — from 1T light duty to 50T M8 class.
Every crane is custom-engineered to your exact specifications: span, lifting capacity, lift height, duty class, and hook approach. Built at our Jaipur facility using quality structural steel, precision-machined components, and branded electrical systems.
Technical Specifications
SPECIFICATIONS & PARAMETERS
Load & Capacity
Capacity Range
1 Ton – 50 Tons
Span
Up to 30 metres
Lift Height
As per requirement
Duty Class
M3 to M8 (IS:3177)
Girder Type
Box / Lattice

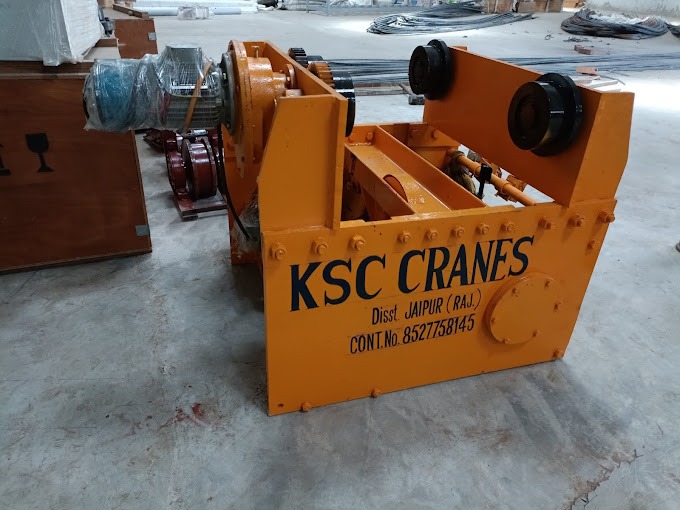

End Carriage
Fabricated box type
Track Rail
As per capacity
Buffer
Heavy-duty hydraulic
Drive & Controls
Cross Travel
VFD / Contactor controlled
Long Travel
VFD / Contactor controlled
Hoist Type
Wire rope, double reeving
Motor
Squirrel cage / Slip ring
Control
Pendant / Radio remote
Power Supply
415V, 3Ph, 50Hz
Motor Protection
IP55
Brakes
Electro-hydraulic / DC disc
Key Features
BUILT-IN ADVANTAGES
Heavy Load Capacity
1T to 50T with dual-girder construction providing superior rigidity and eliminating flex under maximum load.
VFD Speed Control
Variable frequency drives on all motions ensure smooth starts, precise positioning, and reduced mechanical stress.
Multiple Safety Systems
Overload protection, limit switches on all axes, emergency stop, and anti-collision as standard.
Corrosion-Resistant Build
Epoxy-primer and polyurethane finish paint system for long service life in harsh environments.
High-Speed Options
Long travel up to 40 m/min, cross travel 20 m/min, hoist up to 8 m/min depending on capacity.
Custom Engineered
Every dimension, duty class, and feature designed around your specific application. No off-the-shelf compromise.
Where It's Used
INDUSTRIES & APPLICATIONS
🏭
Steel & Fabrication
Rolling mills, fabrication shops, structural steel yards, pressure vessel plants

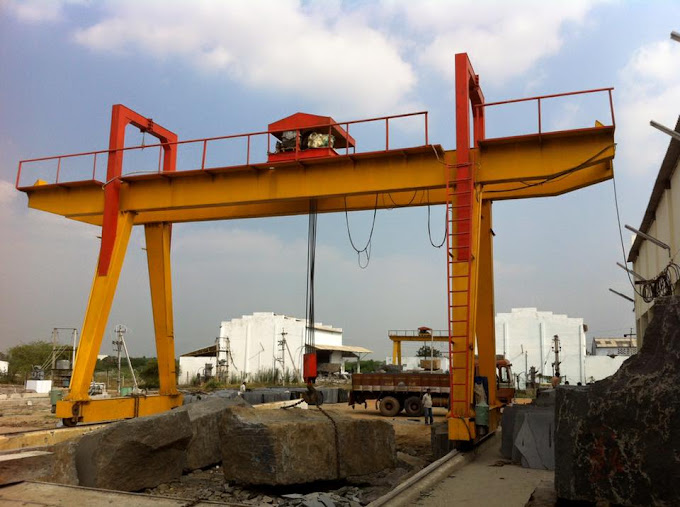

The Goliath (Double Girder Gantry) Crane runs on ground-level rails, eliminating the need for a dedicated overhead runway. Ideal for outdoor yards, open workshops, precast plants, stone quarries, and sites where an overhead runway is not feasible.
Available in single-leg (semi-goliath) and double-leg configurations, up to 50T and 30m spans. Engineered for outdoor duty with weather-protected motors, anti-rust surface treatment, and robust fabricated steel legs.
Technical Specifications
SPECIFICATIONS & PARAMETERS
Load & Capacity
Capacity
Up to 50 Tons
Span
10 m – 30 m
Lift Height
3 m – 18 m
Duty Class
M3 to M6
Leg Type
Single / Double leg
Rail Gauge
As per site
Buffer
Hydraulic / Rubber
Festoon
Enclosed cable festoon
Drive & Controls
Travel Drive
VFD controlled
Hoist
Wire rope, 4/8 reeving
Motor
TEFC squirrel cage IP55
Control
Pendant / Radio remote
Power Supply
415V, 3Ph, 50Hz
Surface Finish
Primer + Polyurethane
Wheels
Forged steel, hardened
Anti-derail
Standard on all models
Key Features
BUILT-IN ADVANTAGES
No Runway Required
Ground-level rails mean no building structure modifications — significantly reducing civil cost.
Radio Remote Option
Full radio remote control for safe operation from any position in the yard.
All-Weather Design
IP55 motors, sealed panels, UV-resistant paint, and weatherproofed limit switches for outdoor use.
Robust Structure
Heavy-section fabricated box girder and legs designed for outdoor wind loads and ground impact.
High Span Capability
Up to 30 metres clear span — handles the widest quarry rows and container bays.
Semi-Goliath Variants
One-legged variant where one rail is at building wall height — maximum layout versatility.
Where It's Used
INDUSTRIES & APPLICATIONS
🪨
Stone & Marble
Quarry yards, stone cutting and polishing sheds, stone export docks
📦
Logistics & Ports
Open warehouses, container handling, freight yards, truck terminals

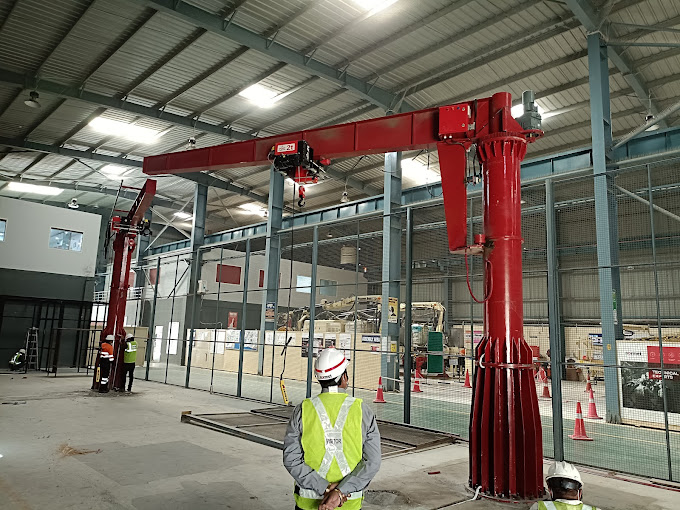

The Jib Crane is the workhorse of the workshop floor — a compact single-arm crane providing up to 270° rotation for precise, localised material handling without interfering with overhead crane operations. Available in pillar-mounted and wall-mounted variants.
Available with electric chain hoist or wire rope hoist, ideal for workstations, assembly lines, loading docks, and machining cells where quick, repetitive lifts are required. Custom arm lengths and column heights engineered to your bay.
Technical Specifications
SPECIFICATIONS & PARAMETERS
Load & Capacity
Capacity
125 kg – 5,000 kg
Jib Length
2 m – 8 m
Rotation
180° / 270°
Column Height
3 m – 8 m
Mounting
Floor / Wall / Ceiling
Travel
Manual / Electric trolley
Hoist
Chain / Wire rope
Foundation
Anchor bolt / Embedded
Drive & Controls
Slew Drive
Manual / Motorised
Motor
As per capacity
Control
Push-button pendant
Power Supply
415V 3Ph / 230V 1Ph
Protection
IP54
Duty Class
M3 to M5
Finish
Epoxy primer + PU topcoat
Colour
As per customer choice
Key Features
BUILT-IN ADVANTAGES
360° Work Envelope
Up to 270° rotation covers the entire workstation — load a machine, unload, and deliver to the next bay.
Motorised Slew Option
Electric slew drive for precise rotation, especially for heavier capacities and repetitive cycles.
Compact Footprint
Single column occupies minimal floor space, ideal for small bays and crowded production floors.
Low Maintenance
Simple structure, minimal moving parts. Robust bearing assembly rated for millions of cycles.
Fast Installation
Pre-fabricated and tested before dispatch. On-site erection typically completed in one working day.
Multi-Unit Layouts
Multiple jib cranes in a line can overlap working radii for seamless material flow across bays.

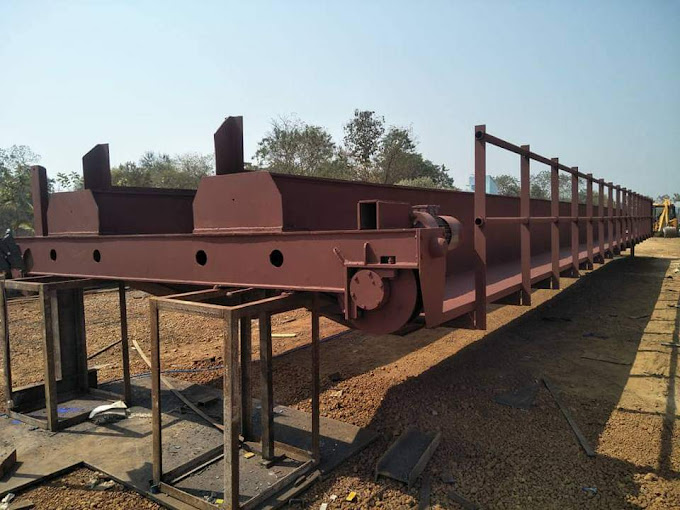

Designed for the most demanding applications where standard cranes fail. Built for M7 and M8 duty class — continuous operation, aggressive cycles, and harsh conditions including high temperature, dust, and fumes. Used in steel melt shops, rolling mills, forge plants, and foundries.
Features reinforced girders, high-temperature rated hoist assemblies, special alloy hooks, and fully redundant safety systems for uninterrupted 24/7 operation. Operator cabin with AC available for high-temperature environments.
Technical Specifications
SPECIFICATIONS & PARAMETERS
Load & Capacity
Capacity
5 Ton – 100+ Tons
Duty Class
M6, M7, M8
Span
Up to 35 m
Lift Height
Up to 30 m
Girder
Reinforced box / Lattice
Hook
Special alloy, forged
Buffer
Heavy-duty hydraulic
Festoon
Insulated for high temp
Drive & Controls
Hoist
Wire rope, 8/16 reeving
Motor
Slip ring / FLC squirrel cage
Inverter
Heavy duty VFD
Brake
Redundant electro-hydraulic
Control
Cabin / Radio / Pendant
Cabin
Air-conditioned available
Protection
IP65 available
Rating
Continuous operation rated
Key Features
BUILT-IN ADVANTAGES
Extreme Load Capacity
5T to 100+ tonnes in continuous 24/7 heavy-duty operation without compromise.
Dual-Motor Hoist
Two hoist motors with independent brakes for redundancy — if one fails, safe operation continues.

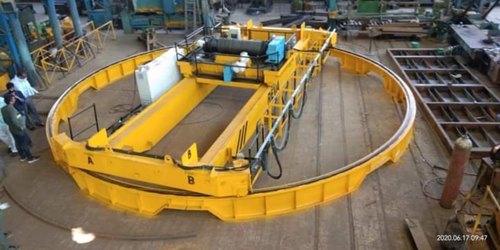

A specialised solution for facilities with circular or rotating bay layouts — foundry pouring areas, circular warehouse bays, and industrial turntables. The crane travels along a circular track mounted at the apex of a conical or cylindrical structure.
Each project is a bespoke engineering exercise designed around your building dimensions, process requirements, and capacity needs. KSC Cranes supplies the crane structure, ring rail, drive system, electrical panel, and handles installation.
Technical Specifications
SPECIFICATIONS & PARAMETERS
Load & Capacity
Type
Circular overhead crane
Travel
360° circular path
Capacity
As per project
Track
Circular ring rail
Girder
Box / Lattice
Span
As per bay diameter
Hook Coverage
Full 360° circle
Structure
Self-supporting / Bay-mounted
Drive & Controls
Drive
VFD circular travel
Hoist
Wire rope / Chain hoist
Control
Pendant / Radio remote
Safety
Limit switches, overload protection
Power Supply
Collector ring / Festoon
Duty Class
M3 – M6 standard
Finish
As per environment
Documentation
Full engineering drawings
Key Features
BUILT-IN ADVANTAGES
Full Bay Coverage
360° travel covers the entire floor area — no dead zones, no manual repositioning.
Bespoke Engineering
Every circular crane is unique. We design from first principles: track, girder, drives, and controls.
Collector Ring Power
Continuous rotation enabled by slip-ring power collection — no cable wrap limitations.
Low Radius Options
Available for tight-radius bays where linear cranes would require impractical column spacing.
Process Integration
Can be integrated with ladle-handling, pouring automation, and process control systems.
Turnkey Supply
We supply crane structure, ring rail, drive system, electrical panel, and manage installation.
Where It's Used
INDUSTRIES & APPLICATIONS
🔥
Foundry Pouring
Circular ladle-handling, full pouring floor coverage for rotary foundry processes
🏭
Circular Warehouses
Round bay storage facilities requiring full circular floor coverage
⚙️
Industrial Turntables
Rotating process equipment servicing and maintenance access
🔬
Specialised Process
Any unique rotary industrial application requiring 360° crane coverage
Also From KSC
RELATED PRODUCTS
EOT Crane
Double Girder EOT Crane
View
Heavy Industry
Heavy Duty EOT Crane
View
Gantry Crane
Goliath Gantry Crane
View
NEED THIS FOR YOUR PROJECT?
Tell us your capacity, span, and duty class — we'll engineer the right solution.

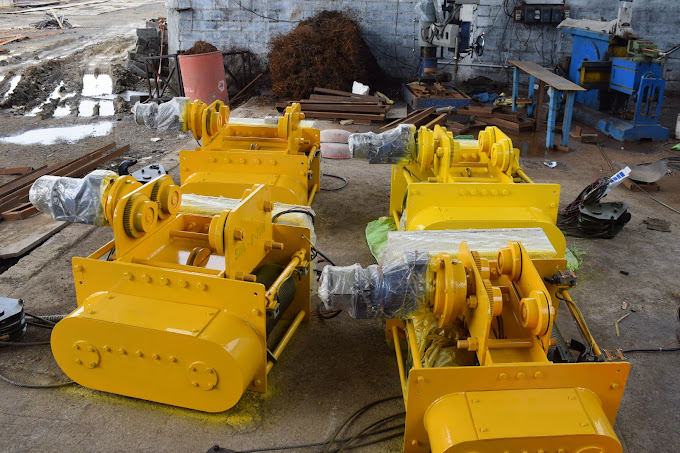

The Electric Wire Rope Hoist is the lifting mechanism at the heart of every EOT crane — and available standalone for single-girder cranes, monorails, or gantries. KSC Cranes supplies standard and low-headroom variants.
All-welded drum construction, multi-layer rope winding, and dual-speed hoisting deliver reliable performance across M3 to M6 duty classes. Fitted with CE-rated motors, limit switches, and disc brakes as standard.
Technical Specifications
SPECIFICATIONS & PARAMETERS
Load & Capacity
Capacity
500 kg – 20,000 kg
Lift Height
3 m – 30 m
Duty Class
M3 to M6
Hoist Speeds
Dual speed standard
Reeving
2/4 part rope
Drum
All-welded steel
Rope Grade
6×19 FC / IWS
Hook Type
Single / Ram / Grab
Drive & Controls
Motor
Squirrel cage, IE2 rated
Brake
Disc, electro-magnetic
Limit Switch
Double-action rotary
Control
Pendant / Radio
Power
415V 3Ph / 230V 1Ph
Travel
Fixed / Motorised trolley
Protection
IP54
Standard
IS:3938 / FEM compliant
Key Features
BUILT-IN ADVANTAGES
Wire Rope System
Multi-layer steel wire rope on a precision-machined drum. Longer service life than chain hoists at higher capacities.
Dual-Speed Hoisting
High speed for rapid transit, low speed for precision landing. VFD option for fully variable speed.
Integrated Safety
Upper and lower limit switches, overload protection, and disc brake for zero-drift parking.
Low-Headroom Variant
Specially designed low-headroom hoist maximises lift height in buildings with tight under-beam clearance.
Cross-Travel Trolley
Available with motorised cross-travel trolley for double-flange crane girders or monorail beams.
Wide Capacity Range
500 kg to 20 tonnes in one product family — same controls philosophy, consistent operator experience.
Where It's Used
INDUSTRIES & APPLICATIONS
🏭
Manufacturing
Assembly lines, production cells, machine loading, part transfer
🏗️
Construction
Material handling at height, formwork, precast concrete, site logistics
🚢
Marine & Dockside
Marine engineering, ship repair, port operations, offshore maintenance
🔧
Maintenance
Equipment replacement lifts, service bays, workshop repair and overhaul
Also From KSC
RELATED PRODUCTS
Components
Crab / Cross-Travel Unit
View
EOT Crane
Double Girder EOT Crane
View
Workshop Crane
Jib Crane
View
NEED THIS FOR YOUR PROJECT?
Tell us your capacity, span, and duty class — we'll engineer the right solution.

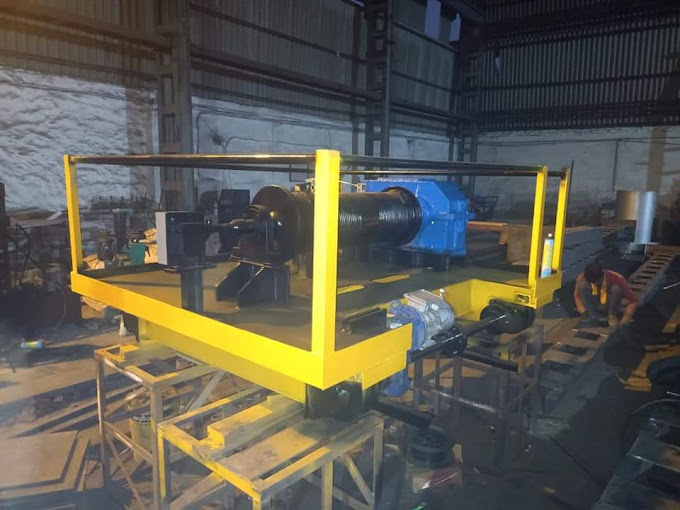

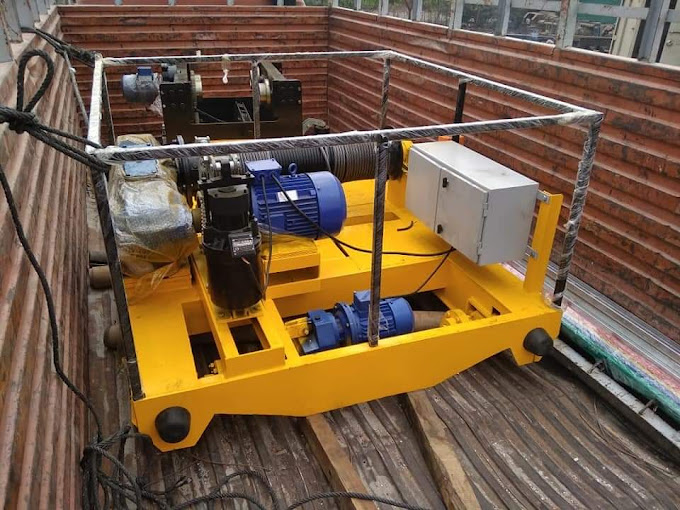

The Crab (Cross-Travel Unit) is the complete hoist-and-drive assembly that travels on top of the crane girders. KSC Cranes supplies crabs as standalone components for crane upgrades, replacements, and new builds from other manufacturers.
Each crab includes the wire rope hoist, cross-travel drive, control panel, and all cabling on a precision-fabricated steel frame. Supplied pre-wired and pre-tested — minimal on-site assembly required.
Technical Specifications
SPECIFICATIONS & PARAMETERS
Load & Capacity
Capacity
1 T – 50 T
Cross Travel
VFD / Contactor
Travel Speed
5 – 20 m/min
Wheel Gauge
Custom to specification
Frame
Fabricated box section
Rail
As per crane girder
Buffer
Rubber / Hydraulic
Lubrication
Centralised grease points
Drive & Controls
Hoist Motor
Squirrel cage / Slip ring
Travel Motor
Squirrel cage TEFC
Brake
Electro-disc on all axes
Control Panel
IP54 panel on crab
Pendant
4-way + hoist + E-stop
Radio Remote
Optional upgrade
Power
Festoon / Conductor bar
Testing
Factory load test at 125%
Key Features
BUILT-IN ADVANTAGES
Heavy Duty Frame
Precision-fabricated box-section frame designed for full load plus dynamic forces at maximum travel speed.
Pre-Wired Assembly
Leaves factory completely wired and tested. On-site work limited to power connection and track alignment.
Factory Load Tested
Every crab load-tested at 125% rated capacity before dispatch. Load test certificate supplied.
Replacement Ready
Exact-match replacement crabs manufactured to fit existing crane girders — no girder modification needed.
Custom Wheel Gauge
Manufactured to your existing wheel gauge — millimetre accuracy for true drop-in replacement.
Any Configuration
Single-speed, dual-speed, VFD, radio remote — any combination to match your crane specification.
Where It's Used
INDUSTRIES & APPLICATIONS
🏭
Crane OEM
Component supply to crane manufacturers and assemblers across India
🔄
Crane Upgrade
Replacement of worn or undersized crab units on existing cranes
🔧
Retrofit
Adding cross-travel capability to a fixed hoist installation
🏗️
New Projects
Complete crab supply for new double-girder crane projects
Also From KSC
RELATED PRODUCTS
EOT Crane
Double Girder EOT Crane
View
Components
DG EOT Trolley
View
Hoist
Wire Rope Hoist
View
NEED THIS FOR YOUR PROJECT?
Tell us your capacity, span, and duty class — we'll engineer the right solution.
The DG EOT Trolley is the cross-travel chassis of the double-girder overhead crane. KSC Cranes supplies trolleys as standalone components for new crane builds and direct drop-in replacements for existing cranes.
Available with motorised cross-travel drive, fabricated steel frame, and forged steel wheels. Supplied with or without hoist. Custom wheel gauge matched to millimetre accuracy for your existing crane.
Technical Specifications
SPECIFICATIONS & PARAMETERS
Load & Capacity
Load Rating
1 T – 50 T
Wheel Gauge
Custom to specification
Wheel Dia
200 mm – 500 mm
Wheel Material
Forged steel, hardened
Travel Speed
5 – 20 m/min
Frame
Box section fabricated
Rail
Flat / Square / CR section
Buffer
Rubber end buffers
Drive & Controls
Drive Motor
Squirrel cage TEFC
Gearbox
Helical reduction
Brake
Electro-disc
Cross Travel
VFD / Direct-on-line
Control
Via main crane pendant
Power
From crane conductor
Lubrication
Centralised grease points
Testing
Factory assembled and tested
Key Features
BUILT-IN ADVANTAGES
Precision Wheel Gauge
Machined to exact gauge specification — smooth rattle-free travel with zero shimming on installation.
Hardened Wheel Profile
Forged and heat-treated steel wheels for extended service life on standard crane rails.
Integrated Drive Unit
Gearbox, motor, and brake in a compact integrated unit — no chain drive, no coupling misalignment.
Low Profile Design
Minimal overall height to maximise hook approach and available lift height within the building.
Drop-In Replacement
Manufactured to match your existing crane wheel gauge and rail — direct replacement without structural changes.
Motorised & Manual
Motorised cross-travel standard; manual push-type trolley available for lighter capacities.
Where It's Used
INDUSTRIES & APPLICATIONS
🏭
Crane Manufacturing
Component supply to crane OEMs and assemblers needing verified, tested components
🔄
Replacement
Worn trolley replacement on existing EOT cranes with minimal downtime
🔧
Upgrades
Upgrading manual trolleys to motorised drive on existing double-girder cranes
🏗️
New Cranes
Trolley supply for all new double-girder crane projects
Also From KSC
RELATED PRODUCTS
Components
Crab / Cross-Travel Unit
View
EOT Crane
Double Girder EOT Crane
View
Hoist
Wire Rope Hoist
View
NEED THIS FOR YOUR PROJECT?
Tell us your capacity, span, and duty class — we'll engineer the right solution.
KSC Cranes extends beyond lifting equipment into the structural infrastructure that houses it. We design, supply, and erect Pre-Engineered Buildings (PEB) and conventional structural sheds for factories, warehouses, and crane bays.
A crane bay shed from KSC Cranes is designed from the outset to accommodate crane loads — runway brackets, column stiffening, and roof loading are all co-engineered. One partner for the structure and the crane inside it.
Technical Specifications
SPECIFICATIONS & PARAMETERS
Load & Capacity
Type
PEB / Conventional structural
Span
9 m – 60 m
Bay Length
6 m – 12 m standard
Height
4.5 m – 20 m eave
Roofing
GI / colour-coated sheets
Cladding
Colour-coated profiled sheets
End Walls
Sheeted or open
Foundation
RCC as per soil report
Drive & Controls
Standard
IS:800 / IS:801
Design Load
As per IS:875 Parts 1–5
Wind Zone
As per IS:875 Part 3
Crane Load
Integrated in structure design
Ventilators
Ridge / Turbo ventilators
Lighting
Translucent sheet panels
Gutters
Gutters and downpipes included
Finish
Primer + paint or galvanised
Key Features
BUILT-IN ADVANTAGES
Crane-Integrated Design
Structure and crane designed as a system — runway brackets, gantry girders, and column loads co-engineered.
Fast Erection
PEB components arrive numbered and pre-drilled. Erection 40–60% faster than conventional construction.
IS:800 Compliant
All structures designed per IS:800:2007 with wind and seismic loads per IS:875 and IS:1893.
Long-Span Capability
Column-free spans up to 60 metres — ideal for large factories, aircraft hangars, and large warehouses.
Turnkey Package
Site preparation, fabrication, delivery, and erection managed by KSC Cranes — single accountability.
Customisable Layout
Mezzanine floors, lean-to extensions, open bays, offices — any combination designed to your brief.
Where It's Used
INDUSTRIES & APPLICATIONS
🏭
Factory Shed
Manufacturing plants, assembly lines, production floors, engineering workshops
📦
Warehouse
Distribution centres, logistics hubs, cold stores, storage buildings
🚜
Agricultural
Grain storage, equipment sheds, irrigation pump houses, processing units
🏗️
Crane Bay
Dedicated crane bays designed for overhead crane operations from the ground up
Also From KSC
RELATED PRODUCTS
EOT Crane
Double Girder EOT Crane
View
Gantry Crane
Goliath Gantry Crane
View
Workshop Crane
Jib Crane
View
NEED THIS FOR YOUR PROJECT?
Tell us your capacity, span, and duty class — we'll engineer the right solution.
From our Jaipur fabrication floor to project sites across India — every crane, hoist, and shed we've built.
Project Site
Site Installation
EOT Crane
Double Girder EOT Crane
Gantry Crane
Goliath Gantry Crane
Manufacturing
Workshop Assembly
Jib Crane
Jib Crane Installation
Heavy Industry
Heavy Duty EOT Crane
Specialised
Circular Crane View
Hoist
Wire Rope Hoist
Components
End Carriage Assembly
Components
Crab Unit Ready
Manufacturing
Crane Girder Painting
Infrastructure

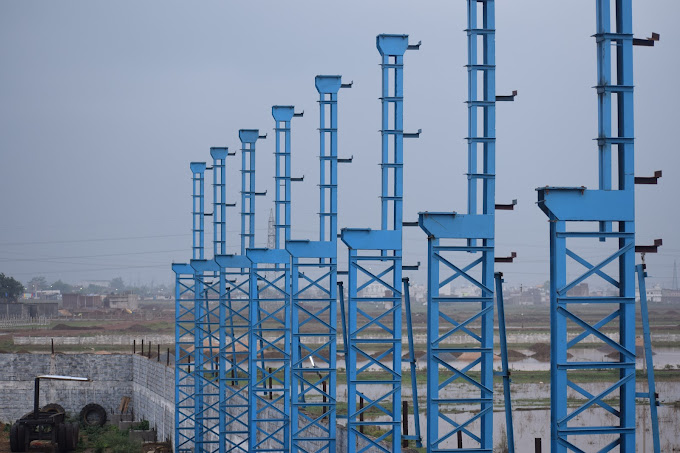

PEB Structure Shed
Components
DG EOT Trolley
Gantry Crane
Gantry Crane Site
EOT Crane
Double Girder EOT
Specialised
Circular EOT Crane
WANT THIS FOR YOUR FACILITY?
Contact us with your requirement — we'll engineer and deliver.
✕
‹
›
About Us
KSC CRANES — BUILT IN JAIPUR, TRUSTED PAN-INDIA
Manufacturers of industrial lifting solutions from the heart of Rajasthan.
100+
Projects Completed
Our Story
MANUFACTURING EXCELLENCE FROM JAIPUR
KSC Cranes is a Jaipur-based manufacturer and supplier of industrial lifting equipment — EOT cranes, goliath cranes, jib cranes, wire rope hoists, and pre-engineered structural sheds. We serve industries across Rajasthan, Madhya Pradesh, Gujarat, and beyond.
Every crane and hoist that leaves our facility is designed, fabricated, and tested in-house. We don't resell or trade third-party equipment — we build what we sell, which means we stand fully behind every product.
Our core strength is custom engineering: if you have an unusual span, tight headroom, extreme duty class, or a unique process requirement — we'll design a solution rather than asking you to compromise.
What Drives Us
OUR VALUES & COMMITMENTS
01
Quality Without Compromise
We use quality-grade structural steel, branded electrical components (Siemens, L&T, Schneider), and precision-machined mechanical parts. No cost-cutting where it affects safety or service life.
02
Custom Engineering First
We don't push standard sizes. Every project starts with your requirement — capacity, span, lift height, duty class, site conditions — and we engineer from there. No off-the-shelf compromise.
03
Turnkey Accountability
From first drawing to final load test, KSC Cranes manages the complete project. One phone number. One person responsible. No finger-pointing between suppliers.
04
Safety as Non-Negotiable
Every crane is designed per IS:3177, load-tested at 125% capacity before dispatch, and supplied with load test certificate and complete operation manual.
05
After-Sales Support
We supply spares, provide maintenance training, and offer service support. Our cranes don't become orphans after commissioning — we remain your long-term partner.
06
On-Time Delivery
We set realistic timelines and stick to them. Our factory pipeline, material procurement, and erection teams are coordinated to deliver on the date we commit to.
Meet the Team
YOUR CONTACT AT KSC CRANES
🏗️
PAWAN KUMAR
Director & Business Head — KSC Cranes, Jaipur
Pawan Kumar personally handles every enquiry, quote, and project at KSC Cranes. With deep expertise in crane engineering and a hands-on approach to delivery, he is your single point of contact from initial requirement through to final commissioning and after-sales support.
Monday – Saturday: 9:00 AM – 6:00 PM Sunday: Closed
Products We Manufacture
Double Girder EOT Crane
Goliath Gantry Crane
Jib Crane
Heavy Duty EOT Crane
Wire Rope Hoist
Circular EOT Crane
Crab / Trolley Units
PEB & Structure Shed
REQUEST A QUOTE
Fill in your requirement — Pawan Kumar will call you back within 24 hours.
Jaipur
Rajasthan, India
Our factory is at New Loha Mandi Road, near Kiroriwal Sweets, Balaji Vihar, Harmada, Jaipur — 302013. Site visits welcome by appointment. Call +91 85277 58145 to schedule.
